Задача. Визначити силу тиску на плоску прямокутну поверхню шириною B=3 м та висотою H=7 м. На вільній поверхні рідини атмосферний тиск .
| (%i1) | kill(all); |
\[\]\[\tag{%o0} \ensuremath{\mathrm{done}}\]
| (%i5) | ro:1000;g:9.81;H:7;B:3;p_m:10000; |
\[\]\[\tag{%o1} 1000\]
\[\]\[\tag{%o2} 9.81\]
\[\]\[\tag{%o3} 7\]
\[\]\[\tag{%o4} 3\]
\[\]\[\tag{%o5} 10000\]
| (%i10) | del1:H/15,numer;del2:H/10,numer;del3:H/7,numer; del4:H/5,numer;del5:H/3,numer; |
\[\]\[\tag{%o6} 0.4666666666666667\]
\[\]\[\tag{%o7} 0.7\]
\[\]\[\tag{%o8} 1\]
\[\]\[\tag{%o9} 1.4\]
\[\]\[\tag{%o10} 2.3333333333333335\]
| (%i11) | dh:H/5,numer; |
\[\]\[\tag{%o11} 1.4\]
| (%i13) | 'integrate((ro·g·(H−h))·B,h,0,H);integrate((ro·g·(H−h))·B,h); |
\[\]\[\tag{%o12} 29430.0 \int_{0}^{7}7\mathop{-}h{\, dh}\]
\[\]\[\tag{%o13} 29430.0 \left( 7 h\mathop{-}\frac{{{h}^{2}}}{2}\right) \]
| (%i14) | pi(h):=9810.0·(H−h); |
\[\]\[\tag{%o14} \mathop{pi}(h)\mathop{:=}9810.0 \left( H\mathop{-}h\right) \]
| (%i15) | P:integrate(ro·g·(H−h)·B,h,0,H); |
\[\]\[\tag{%o15} 721035.0\]
| (%i16) |
if P<10 then scale:3 elseif P<100 then scale:20 elseif P<1000 then scale:200 elseif P<10000 then scale:2000 elseif P<100000 then scale:20000 elseif P<1000000 then scale:200000 elseif P<10000000 then scale:2000000 ; |
\[\]\[\tag{%o16} 200000\]
| (%i18) | pi(0);pi(0)/scale; |
\[\]\[\tag{%o17} 68670.0\]
\[\]\[\tag{%o18} 0.34335\]
| (%i19) | 'integrate(ro·g·((H−h)··2)·B,h,0,H); |
\[\]\[\tag{%o19} 29430.0 \int_{0}^{7}{{\left( 7\mathop{-}h\right) }^{2}}{\, dh}\]
| (%i20) | mP:integrate(ro·g·((H−h)··2)·B,h,0,H); |
\[\]\[\tag{%o20} 3364830.0\]
| (%i22) | h_D:mP/P;h_D_:H−h_D; |
\[\]\[\tag{%o21} 4.666666666666667\]
\[\]\[\tag{%o22} 2.333333333333333\]
| (%i24) | x_draw:3·B;y_draw:H+2; |
\[\]\[\tag{%o23} 9\]
\[\]\[\tag{%o24} 9\]
| (%i26) | n: h_D_;mod(n,1); |
\[\]\[\tag{%o25} 2.333333333333333\]
\[\]\[\tag{%o26} 0.33333333333333304\]
| --> | /* make float to string */; |
| (%i27) | if floor(n·100)/100>0 then n:floor(n·100)/100 elseif floor(n·1000)/1000>0 then n:floor(n·1000)/1000; |
\[\]\[\tag{%o27} \frac{233}{100}\]
| (%i28) | n:n,numer; |
\[\]\[\tag{%o28} 2.33\]
| (%i29) | hh:sconcat(n); |
\[\]\[\tag{%o29} "2.33"\]
| (%i30) | hh; |
\[\]\[\tag{%o30} "2.33"\]
| (%i31) | pp:sconcat(P); |
\[\]\[\tag{%o31} "721035.0"\]
| (%i32) | pp; |
\[\]\[\tag{%o32} "721035.0"\]
| --> | /* p_:printf(false, "~d", n);stringp(pp);p_;n; */; |
| --> | /* https://sourceforge.net/p/maxima/mailman/maxima-discuss/thread/34939E59-E2C1-484B-A0CF-C6D70CB9E835@peterpall.de/ */; |
| (%i33) | scale_p:pi(0); |
\[\]\[\tag{%o33} 68670.0\]
| (%i58) |

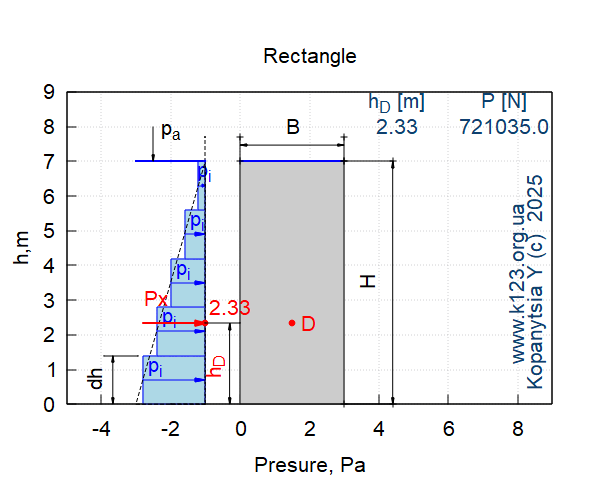

draw2d(xrange = [−5,x_draw], yrange = [0,y_draw+1], font = "Arial", font_size = 16, title="Rectangle", xlabel = "B, m", ylabel = "h,m", grid = true, proportional_axes=xy, line_type = solid, color = black, fill_color = "#cccccc", line_width=1, rectangle([0,0],[B,H]), line_width=2,color=blue, water:polygon([[−3,H],[6,H]]), /* water:polygon([[0,H],[B,H]]), */ color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([0,H+del4],[B,0]), label(["B",B/2,H+del5]), points_joined = true, points([[0,H],[0,H+del4]]), points([[B,H],[B,H+del4]]), /* */ points([[B,0],[B+del4,0]]), points([[B,H],[B+del4,H]]), vector([B+del4,0],[0,H]), vector([B+del5+del1,0],[0,H]), points_joined = false, label_orientation = 'vertical, label(["H",B+del2,H/2]), label(["h",B+del5,H/2]), /* p_a */ color = black, label_orientation = 'horizontal, head_both = false, line_type = solid, head_length = 0.2, head_angle = 10, color = black, vector([B/2,(H+del3)],[0,−del3]), label(["p_a",B/2−0.5+del3,H+del3]), /* Epura line_width=1,color=blue,line_type = solid, fill_color = lightblue, poly:polygon([[−1,0],[−1,H],[−pi(0)/scale_p−1,0],[0−1,0]]), head_length = 0.3, head_angle = 10, color = blue, line_width=2, head_both = false, vector([−pi(dh*0)/scale_p−1,H-5*dh],[pi(dh*0)/scale_p,0]), vector([−pi(dh*1)/scale_p−1,H-4*dh],[pi(dh*1)/scale_p,0]), vector([−pi(dh*2)/scale_p−1,H-3*dh],[pi(dh*2)/scale_p,0]), vector([−pi(dh*3)/scale_p−1,H-2*dh],[pi(dh*3)/scale_p,0]), vector([−pi(dh*4)/scale_p−1,H-1*dh],[pi(dh*4)/scale_p,0]), transparent = true, line_width=1, color = black, points_joined = true, point_size=0.1, points([[-2,0],[-1,0],[-1,H+del2]]), line_width=2,color=blue, water:points([[-2,H],[-1,H]]), color = red, label(["Px",-1-del4,h_D_+del2]), label([hh,-1+del2,h_D_+del1]), line_type = solid, head_length = 0.3, head_angle = 15, line_width=2, point_type = filled_circle, point_size=1, vector([-1−P/(scale*2),h_D_],[P/(scale*2),0]), points([[-1,h_D_]]), points([[B/2,h_D_]]), label_orientation = 'horizontal, label(["D",B/2+del1,h_D_]), */ /* h_D color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([-1+del2,0],[0,h_D_]), points_joined = false, label_orientation = 'vertical, label(["h_D_",-del2,h_D_/2]), points_joined = true, point_size=0.1, points([[-1,h_D_],[-1+del3,h_D_]]), */ /* copy right */ color = "#0e406e", label_orientation = 'vertical, label(["www.k123.org.ua ",3·B−1,H/2]), label(["Kopanytsia Y (c) 2025",3·B−0.5,H/2]), /* Results */ color = "#0e406e" /* rectangle([0,y_draw-del4],[x_draw,y_draw]), */ /* label_orientation = 'horizontal, label([hh,x_draw/2,y_draw-del3]), label(["h_D [m]",x_draw/2,y_draw-del1/2]), label([pp,x_draw-del4,y_draw-del3]), label(["P [N]",x_draw-del4,y_draw-del1/2]) */ /* key = "Force", xtics_secondary = true, ytics_secondary = true, xaxis_secondary = true, yaxis_secondary = true, xlabel_secondary="P[N]", ylabel_secondary="p[Pa]", yrange_secondary=[-49050.0,2/5*49050.0], xrange_secondary=[-P,P] */ )$ |
| (%i50) |

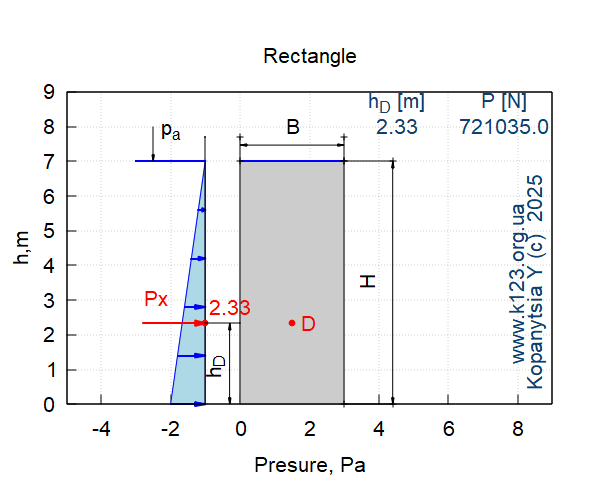

draw2d(xrange = [−5,x_draw], yrange = [0,y_draw], font = "Arial", font_size = 16, title="Rectangle", xlabel = "Presure, Pa", ylabel = "h,m", grid = true, proportional_axes=xy, line_type = solid, color = black, fill_color = "#cccccc", line_width=1, rectangle([0,0],[B,H]), line_width=2,color=blue, water:polygon([[−3,H],[−1,H]]), water:polygon([[0,H],[B,H]]), color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([0,H+del2],[B,0]), label(["B",B/2,H+del3]), points_joined = true, points([[0,H],[0,H+del2]]), points([[B,H],[B,H+del2]]), points([[B,0],[B+del4,0]]), points([[B,H],[B+del4,H]]), vector([B+del4,0],[0,H]), points_joined = false, label_orientation = 'vertical, label(["H",B+del2,H/2]), /* p_a */ color = black, label_orientation = 'horizontal, head_both = false, line_type = solid, head_length = 0.2, head_angle = 10, color = black, vector([−2.5,(H+del3)],[0,−del3]), label(["p_a",−2.5−0.5+del3,H+del3]), /* Epura */ line_width=1,color=blue,line_type = solid, fill_color = lightblue, poly:polygon([[−1,0],[−1,H],[−pi(0)/scale_p−1,0],[0−1,0]]), head_length = 0.3, head_angle = 10, color = blue, line_width=2, head_both = false, vector([−pi(dh·0)/scale_p−1,H−5·dh],[pi(dh·0)/scale_p,0]), vector([−pi(dh·1)/scale_p−1,H−4·dh],[pi(dh·1)/scale_p,0]), vector([−pi(dh·2)/scale_p−1,H−3·dh],[pi(dh·2)/scale_p,0]), vector([−pi(dh·3)/scale_p−1,H−2·dh],[pi(dh·3)/scale_p,0]), vector([−pi(dh·4)/scale_p−1,H−1·dh],[pi(dh·4)/scale_p,0]), transparent = true, line_width=1, color = black, points_joined = true, point_size=0.1, points([[−2,0],[−1,0],[−1,H+del2]]), line_width=2,color=blue, water:points([[−2,H],[−1,H]]), color = red, label(["Px",−1−del4,h_D_+del2]), label([hh,−1+del2,h_D_+del1]), line_type = solid, head_length = 0.3, head_angle = 15, line_width=2, point_type = filled_circle, point_size=1, vector([−1−P/(scale·2),h_D_],[P/(scale·2),0]), points([[−1,h_D_]]), points([[B/2,h_D_]]), label_orientation = 'horizontal, label(["D",B/2+del1,h_D_]), /* h_D */ color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([−1+del2,0],[0,h_D_]), points_joined = false, label_orientation = 'vertical, label(["h_D_",−del2,h_D_/2]), points_joined = true, point_size=0.1, points([[−1,h_D_],[−1+del3,h_D_]]), /* copy right */ color = "#0e406e", label_orientation = 'vertical, label(["www.k123.org.ua ",3·B−1,H/2]), label(["Kopanytsia Y (c) 2025",3·B−0.5,H/2]), /* Results */ color = "#0e406e", /* rectangle([0,y_draw-del4],[x_draw,y_draw]), */ label_orientation = 'horizontal, label([hh,x_draw/2,y_draw−del3]), label(["h_D [m]",x_draw/2,y_draw−del1/2]), label([pp,x_draw−del4,y_draw−del3]), label(["P [N]",x_draw−del4,y_draw−del1/2]) /* key = "Force", xtics_secondary = true, ytics_secondary = true, xaxis_secondary = true, yaxis_secondary = true, xlabel_secondary="P[N]", ylabel_secondary="p[Pa]", yrange_secondary=[-49050.0,2/5*49050.0], xrange_secondary=[-P,P] */ )$ |
| --> | P;P/scale; |
\[\]\[\tag{%o35} 721035.0\]
\[\]\[\tag{%o36} 3.605175\]
| --> | H−2·dh;H;dh; |
\[\]\[\tag{%o35} 2.4\]
\[\]\[\tag{%o36} 4\]
\[\]\[\tag{%o37} 0.8\]
| --> | 'integrate(ro·g·((H−h)·h)·B,h,0,H); |
\[\]\[\tag{%o38} 29430.0 \int \left( 4\mathop{-}h\right) h{\, dh}\]
| --> | mP_down:integrate(ro·g·((H−h)·h)·B,h,0,H); |
\[\]\[\tag{%o39} 313920.0\]
| --> | h_D_down:mP_down/P; |
\[\]\[\tag{%o40} 1.3333333333333333\]
Numerical method K123 (Rectangle)
| --> | P_sum:0; n:5; dh:H/n;P_sum2:0; |
\[\]\[\tag{%o41} 0\]
\[\]\[\tag{%o42} 5\]
\[\]\[\tag{%o43} \frac{4}{5}\]
\[\]\[\tag{%o44} 0\]
| --> | fP(i):=ro·g·(H−i·dh)·(B·dh); |
\[\]\[\tag{%o45} \mathop{fP}(i)\mathop{:=}\ensuremath{\mathrm{ro}} g\, \left( H\mathop{-}i\, \ensuremath{\mathrm{dh}}\right) \, \left( B\, \ensuremath{\mathrm{dh}}\right) \]
| --> | fP2(i):=ro·g·(H−(i·dh+dh/2))·(B·dh); |
\[\]\[\tag{%o46} \mathop{fP2}(i)\mathop{:=}\ensuremath{\mathrm{ro}} g\, \left( H\mathop{-}\left( i\, \ensuremath{\mathrm{dh}}\mathop{+}\frac{\ensuremath{\mathrm{dh}}}{2}\right) \right) \, \left( B\, \ensuremath{\mathrm{dh}}\right) \]
| --> | for i:0 thru n−1 step 1 do (Pi:fP(i),P_sum:P_sum+Pi)$ |
| --> | for i:0 thru n−1 step 1 do (Pi:fP2(i),P_sum2:P_sum2+Pi,Pv[i]:Pi)$ |
| --> | P_sum;P_sum2;P; |
\[\]\[\tag{%o49} 282528.0\]
\[\]\[\tag{%o50} 235439.99999999997\]
\[\]\[\tag{%o51} 235440.0\]
| --> | (P−P_sum)/(P/100);(P−P_sum2)/(P/100); |
\[\]\[\tag{%o52} \mathop{-}20.0\]
\[\]\[\tag{%o53} 1.2361463836533173 {{10}^{-14}}\]
| --> | Pv[4]; |
\[\]\[\tag{%o54} 9417.6\]
| --> | scale_p2:scale_p/2; |
\[\]\[\tag{%o55} 19620.0\]
| --> |
draw2d(xrange = [−5,x_draw], yrange = [0,y_draw], font = "Arial", font_size = 16, title="Rectangle", xlabel = "Presure, Pa", ylabel = "h,m", grid = true, proportional_axes=xy, line_type = solid, color = black, fill_color = "#cccccc", line_width=1, rectangle([0,0],[B,H]), line_width=2,color=blue, water:polygon([[−3,H],[−1,H]]), water:polygon([[0,H],[B,H]]), color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([0,H+del1],[B,0]), label(["B",B/2,H+del3]), points_joined = true, points([[0,H],[0,H+del2]]), points([[B,H],[B,H+del2]]), points([[B,0],[B+del4,0]]), points([[B,H],[B+del4,H]]), vector([B+del4,0],[0,H]), points_joined = false, label_orientation = 'vertical, label(["H",B+del2,H/2]), /* p_a */ color = black, label_orientation = 'horizontal, head_both = false, line_type = solid, head_length = 0.2, head_angle = 10, color = black, vector([−2.5,(H+del3)],[0,−del3]), label(["p_a",−2.5−0.5+del3,H+del3]), /* Epura */ line_width=1,color=blue,line_type = solid, fill_color = lightblue, /* poly:polygon([[−1,0],[−1,H],[−pi(0)/scale_p2−1,0],[0−1,0]]), */ head_length = 0.3, head_angle = 10, color = blue, line_width=1, head_both = false, rectangle([−1,dh·0],[−pi(dh·0+dh/2)/scale_p2−1,dh]), vector([−pi(dh·0+dh/2)/scale_p2−1,H−5·dh+dh/2],[pi(dh·0+dh/2)/scale_p2,0]), label(["p_i",−pi(dh·0+dh/2−del5)/scale_p2,H−5·dh+dh/2+del1]), rectangle([−1,dh·1],[−pi(dh·1+dh/2)/scale_p2−1,dh·2]), vector([−pi(dh·1+dh/2)/scale_p2−1,H−4·dh+dh/2],[pi(dh·1+dh/2)/scale_p2,0]), label(["p_i",−pi(dh·1+dh/2−del5)/scale_p2,H−4·dh+dh/2+del1]), rectangle([−1,dh·2],[−pi(dh·2+dh/2)/scale_p2−1,dh·3]), vector([−pi(dh·2+dh/2)/scale_p2−1,H−3·dh+dh/2],[pi(dh·2+dh/2)/scale_p2,0]), label(["p_i",−pi(dh·2+dh/2−del5)/scale_p2,H−3·dh+dh/2+del1]), rectangle([−1,dh·3],[−pi(dh·3+dh/2)/scale_p2−1,dh·4]), vector([−pi(dh·3+dh/2)/scale_p2−1,H−2·dh+dh/2],[pi(dh·3+dh/2)/scale_p2,0]), label(["p_i",−pi(dh·3+dh/2−del5)/scale_p2,H−2·dh+dh/2+del1]), rectangle([−1,dh·4],[−pi(dh·4+dh/2)/scale_p2−1,dh·5]), vector([−pi(dh·4+dh/2)/scale_p2−1,H−1·dh+dh/2],[pi(dh·4+dh/2)/scale_p2,0]), label(["p_i",−pi(dh·4−del5)/scale_p2,H−1·dh+dh/2+del1]), color=black,line_type = dashes, transparent = true, /* fill_color = lightblue, */ poly:polygon([[−1,0],[−1,H],[−pi(0)/scale_p2−1,0],[0−1,0]]), transparent = true, line_width=1, color = black, points_joined = true, point_size=0.1, points([[−2,0],[−1,0],[−1,H+del2]]), line_width=2,color=blue, water:points([[−2,H],[−1,H]]), color = red, label(["Px",−1−del4,h_D_+del2]), label([hh,−1+del2,h_D_+del1]), line_type = solid, head_length = 0.3, head_angle = 15, line_width=2, point_type = filled_circle, point_size=1, vector([−1−P/(scale·2),h_D_],[P/(scale·2),0]), points([[−1,h_D_]]), points([[B/2,h_D_]]), label_orientation = 'horizontal, label(["D",B/2+del1,h_D_]), /* h_D */ color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([−1+del2,0],[0,h_D_]), /* dh */ vector([−1−del1−pi(dh·0+dh/2−del4)/scale_p2,0],[0,dh]), points_joined = true, point_size=0.1, points([[−1−del1−pi(dh·0+dh/2−del5)/scale_p2,dh], [−1−del1−pi(dh·0+dh/2−del5)/scale_p2+del3,dh]]), points_joined = false, label_orientation = 'vertical, color = red, label(["h_D_",−del2,h_D_/2]), color = black, label(["dh",−1−del2−pi(dh·0+dh/2−del5)/scale_p2,dh/2]), points_joined = true, point_size=0.1, points([[−1,h_D_],[−1+del3,h_D_]]), /* copy right */ color = "#0e406e", label_orientation = 'vertical, label(["www.k123.org.ua ",3·B−1,H/2]), label(["Kopanytsia Y (c) 2025",3·B−0.5,H/2]), /* Results */ color = "#0e406e", /* rectangle([0,y_draw-del4],[x_draw,y_draw]), */ label_orientation = 'horizontal, label([hh,x_draw/2,y_draw−del3]), label(["h_D [m]",x_draw/2,y_draw−del1/2]), label([pp,x_draw−del4,y_draw−del3]), label(["P [N]",x_draw−del4,y_draw−del1/2]) /* key = "Force", xtics_secondary = true, ytics_secondary = true, xaxis_secondary = true, yaxis_secondary = true, xlabel_secondary="P[N]", ylabel_secondary="p[Pa]", yrange_secondary=[-49050.0,2/5*49050.0], xrange_secondary=[-P,P] */ )$ |
Задача. Визначити силу тиску на плоску
прямокутну поверхню шириною B=3 м та
висотою H=7 м. На вільній поверхні рідини
атмосферний тиск . Прошарок води h1=1 м.
| --> | kill(all); |
\[\]\[\tag{%o0} \ensuremath{\mathrm{done}}\]
| --> | ro:1000;g:9.81;H:7;B:3;p_m:10000; |
\[\]\[\tag{%o1} 1000\]
\[\]\[\tag{%o2} 9.81\]
\[\]\[\tag{%o3} 4\]
\[\]\[\tag{%o4} 3\]
\[\]\[\tag{%o5} 10000\]
| --> | h1:1; |
\[\]\[\tag{%o6} 1\]
| --> | del1:H/15,numer;del2:H/10,numer;del3:H/7,numer; del4:H/5,numer;del5:H/3,numer; |
\[\]\[\tag{%o7} 0.26666666666666666\]
\[\]\[\tag{%o8} 0.4\]
\[\]\[\tag{%o9} 0.5714285714285714\]
\[\]\[\tag{%o10} 0.8\]
\[\]\[\tag{%o11} 1.3333333333333333\]
| --> | dh:H/5,numer; |
\[\]\[\tag{%o12} 0.8\]
| --> | 'integrate((ro·g·(H−h+h1))·B,h,0,H);integrate((ro·g·(H−h+h1))·B,h); |
\[\]\[\tag{%o13} 29430.0 \int 5\mathop{-}h{\, dh}\]
\[\]\[\tag{%o14} 29430.0 \left( 5 h\mathop{-}\frac{{{h}^{2}}}{2}\right) \]
| --> | pi(h):=9810.0·(H−h+h1); |
\[\]\[\tag{%o15} \mathop{pi}(h)\mathop{:=}9810.0 \left( H\mathop{-}h\mathop{+}\ensuremath{\mathrm{h1}}\right) \]
| --> | P_h1:integrate(ro·g·(H−h+h1)·B,h,0,H); |
\[\]\[\tag{%o16} 353160.0\]
| --> |
if P_h1<10 then scale:3 elseif P_h1<100 then scale:20 elseif P_h1<1000 then scale:200 elseif P_h1<10000 then scale:2000 elseif P_h1<100000 then scale:20000 elseif P_h1<1000000 then scale:200000 elseif P_h1<10000000 then scale:2000000 ; |
\[\]\[\tag{%o17} 200000\]
| --> | pi(0);pi(0)/scale;pi(h1)/scale; |
\[\]\[\tag{%o18} 49050.0\]
\[\]\[\tag{%o19} 0.24525\]
\[\]\[\tag{%o20} 0.1962\]
| --> | mP_h1:integrate(ro·g·((H−h+h1)··2)·B,h,0,H); |
\[\]\[\tag{%o21} 1216440.0\]
| --> | h_D_h1:mP_h1/P_h1; |
\[\]\[\tag{%o22} 3.4444444444444446\]
| --> | mP_h1_down:integrate(ro·g·((H−h+h1)·h)·B,h,0,H); |
\[\]\[\tag{%o23} 549360.0\]
| --> | h_D_h1_down:mP_h1_down/P_h1; |
\[\]\[\tag{%o24} 1.5555555555555556\]
| --> | h_D_h1+h_D_h1_down; |
\[\]\[\tag{%o25} 5.0\]
| --> | x_draw:3·B;y_draw:H+h1+2; |
\[\]\[\tag{%o26} 9\]
\[\]\[\tag{%o27} 7\]
| --> | n: h_D_h1_down;mod(n,1); |
\[\]\[\tag{%o28} 1.5555555555555556\]
\[\]\[\tag{%o29} 0.5555555555555556\]
| --> | if floor(n·100)/100>0 then n:floor(n·100)/100 elseif floor(n·1000)/1000>0 then n:floor(n·1000)/1000; |
\[\]\[\tag{%o30} \frac{31}{20}\]
| --> | n:n,numer; |
\[\]\[\tag{%o31} 1.55\]
| --> | hh:sconcat(n); |
\[\]\[\tag{%o32} "1.55"\]
| --> | pp:sconcat(P_h1); |
\[\]\[\tag{%o33} "353160.0"\]
| --> | scale_p:pi(0)/2;scale; |
\[\]\[\tag{%o34} 24525.0\]
\[\]\[\tag{%o35} 200000\]
| --> |

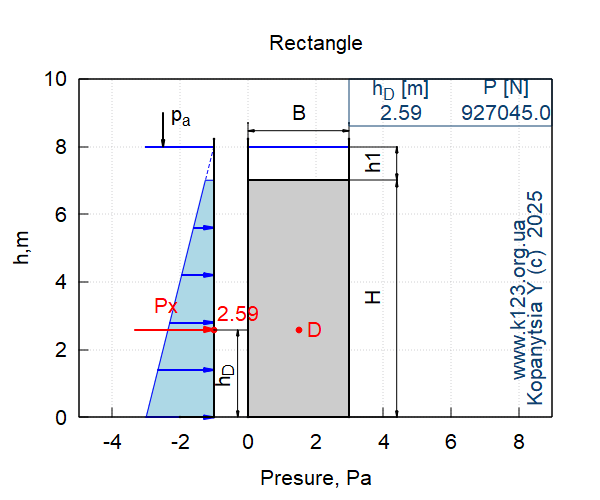

draw2d(xrange = [−5,x_draw], yrange = [0,y_draw], font = "Arial", font_size = 16, title="Rectangle", xlabel = "Presure, Pa", ylabel = "h,m", grid = true, proportional_axes=xy, line_type = solid, color = black, fill_color = "#cccccc", line_width=2, rectangle([0,0],[B,H]), line_width=2,color=blue, water:polygon([[−3,H+h1],[−1,H+h1]]), water:polygon([[0,H+h1],[B,H+h1]]), color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([0,H+h1+del1],[B,0]), label(["B",B/2,H+h1+del3]), points_joined = true, point_size=0.1, points([[0,H+h1],[0,H+h1+del2]]), points([[B,H+h1],[B,H+h1+del2]]), points([[B,0],[B+del4,0]]), points([[B,H],[B+del4,H]]), vector([B+del4,0],[0,H]), points([[B,H+h1],[B+del4,H+h1]]), vector([B+del4,H],[0,h1]), line_width=2, points([[0,0],[0,H+del1/2+h1]]), points([[B,0],[B,H+del1/2+h1]]), points_joined = false, label_orientation = 'vertical, label(["H",B+del2,H/2]), label(["h1",B+del2,(H+h1/2)]), /* p_a */ color = black, label_orientation = 'horizontal, head_both = false, line_type = solid, head_length = 0.2, head_angle = 10, color = black, vector([−2.5,(H+h1+del3)],[0,−del3]), label(["p_a",−2.5−0.5+del3,H+h1+del3]), /* Epura */ line_width=1,color=blue,line_type = dashes, fill_color = white, poly:polygon([[−1,0],[−1,H+h1],[−pi(0)/scale_p−1,0],[0−1,0]]), line_type = solid, fill_color = lightblue, poly:polygon([[−1,0],[−1,H],[−pi(H)/scale_p−1,H],[−pi(0)/scale_p−1,0],[0−1,0]]), head_length = 0.3, head_angle = 10, color = blue, line_width=2, head_both = false, vector([−pi(dh·0)/scale_p−1,H−5·dh],[pi(dh·0)/scale_p,0]), vector([−pi(dh·1)/scale_p−1,H−4·dh],[pi(dh·1)/scale_p,0]), vector([−pi(dh·2)/scale_p−1,H−3·dh],[pi(dh·2)/scale_p,0]), vector([−pi(dh·3)/scale_p−1,H−2·dh],[pi(dh·3)/scale_p,0]), vector([−pi(dh·4)/scale_p−1,H−1·dh],[pi(dh·4)/scale_p,0]), transparent = true, line_width=2, color = black, points_joined = true, point_size=0.1, points([[−2,0],[−1,0],[−1,H+h1+del1/2]]), line_width=2,color=blue, color = red, label(["Px",−1−del4,h_D_h1_down+del2]), label([hh,−1+del2,h_D_h1_down+del1]), line_type = solid, head_length = 0.3, head_angle = 15, line_width=2, point_type = filled_circle, point_size=1, vector([−1−P_h1/(scale·2),h_D_h1_down],[P_h1/(scale·2),0]), points([[−1,h_D_h1_down]]), points([[B/2,h_D_h1_down]]), label_orientation = 'horizontal, label(["D",B/2+del1,h_D_h1_down]), /* h_D_h1_down */ color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([−1+del2,0],[0,h_D_h1_down]), points_joined = false, label_orientation = 'vertical, label(["h_D_",−del2,h_D_h1_down/2]), points_joined = true, point_size=0.1, points([[−1,h_D_h1_down],[−1+del3,h_D_h1_down]]), /* copy right */ color = "#0e406e", label_orientation = 'vertical, label(["www.k123.org.ua ",3·B−1,H/2]), label(["Kopanytsia Y (c) 2025",3·B−0.5,H/2]), /* Results */ color = "#0e406e", rectangle([x_draw/3,y_draw−del4],[x_draw,y_draw]), label_orientation = 'horizontal, label([hh,x_draw/2,y_draw−del3]), label(["h_D [m]",x_draw/2,y_draw−del1/2]), label([pp,x_draw−del4,y_draw−del3]), label(["P [N]",x_draw−del4,y_draw−del1/2]) /* key = "Force", xtics_secondary = true, ytics_secondary = true, xaxis_secondary = true, yaxis_secondary = true, xlabel_secondary="P[N]", ylabel_secondary="p[Pa]", yrange_secondary=[-49050.0,2/5*49050.0], xrange_secondary=[-P,P] */ )$; |
Triangle
| --> | H:7; |
\[\]\[\tag{%o37} 4\]
| --> | fB(h):=(B/H)·(H−h); |
\[\]\[\tag{%o38} \mathop{fB}(h)\mathop{:=}\frac{B}{H} \left( H\mathop{-}h\right) \]
| --> | fB(0);fB(H); |
\[\]\[\tag{%o39} 3\]
\[\]\[\tag{%o40} 0\]
| --> | P_tri:integrate(ro·g·(H−h)·fB(h),h,0,H); |
\[\]\[\tag{%o41} 156960.0\]
| --> | mP_tri:integrate(ro·g·((H−h)··2)·fB(h),h,0,H); |
\[\]\[\tag{%o42} 470880.0\]
| --> | h_D_tri:mP_tri/P_tri; |
\[\]\[\tag{%o43} 3.0\]
| --> | h_D_tri_down:H−h_D_tri; |
\[\]\[\tag{%o44} 1.0\]
| --> | P_trap:integrate(ro·g·(H−h)·fB(h),h,0,H/2); |
\[\]\[\tag{%o45} 137340.0\]
| --> | mP_trap:integrate(ro·g·((H−h)··2)·fB(h),h,0,H/2); |
\[\]\[\tag{%o46} 441450.0\]
| --> | h_D_trap:mP_trap/P_trap; |
\[\]\[\tag{%o47} 3.2142857142857144\]
| --> | mP_trap_down:integrate(ro·g·((H−h)·h)·fB(h),h,0,H/2); |
\[\]\[\tag{%o48} 107910.0\]
| --> | h_D_trap_down:mP_trap_down/P_trap; |
\[\]\[\tag{%o49} 0.7857142857142857\]
| --> | R:1; |
\[\]\[\tag{%o50} 1\]
| --> | fB_circle(h):=2·sqrt(R··2−h··2); |
\[\]\[\tag{%o51} \mathop{fB\_ circle}(h)\mathop{:=}2 \sqrt{{{R}^{2}}\mathop{-}{{h}^{2}}}\]
| --> | fB_circle(0);fB_circle(R); |
\[\]\[\tag{%o52} 2\]
\[\]\[\tag{%o53} 0\]
| --> | P_cir_up:integrate(ro·g·(R−h)·fB_circle(h),h,0,R); |
\[\]\[\tag{%o54} 19620.0 \left( \frac{\pi }{4}\mathop{-}\frac{1}{3}\right) \]
| --> | P_cir_up,numer; |
\[\]\[\tag{%o55} 8869.511965857935\]
| --> | mP_cir_up:integrate(ro·g·((R−h)··2)·fB_circle(h),h,0,R); |
\[\]\[\tag{%o56} 19620.0 \left( \frac{5 \pi }{16}\mathop{-}\frac{2}{3}\right) \]
| --> | h_D_cir_up:mP_cir_up/P_cir_up,numer; |
\[\]\[\tag{%o57} 0.6969819738807302\]
| --> | h_c:(1−0.4244)·R;p:ro·g·h_c;w:(%pi·(R··2))/2;P:p·w,numer;I:0.1098·R··4; |
\[\]\[\tag{%o58} 0.5756\]
\[\]\[\tag{%o59} 5646.636\]
\[\]\[\tag{%o60} \frac{\pi }{2}\]
\[\]\[\tag{%o61} 8869.715087547827\]
\[\]\[\tag{%o62} 0.1098\]
| --> | h_D:h_c+I/(h_c·w),numer; |
\[\]\[\tag{%o63} 0.6970399774252266\]
