| (%i1) | kill(all); |
\[\]\[\tag{%o0} \ensuremath{\mathrm{done}}\]
| (%i1) | load("draw")$ |
| (%i5) | long_x:7; label_left:3; label_vert:1.5; label_URL:0.2; |
\[\]\[\tag{%o2} 7\]
\[\]\[\tag{%o3} 3\]
\[\]\[\tag{%o4} 1.5\]
\[\]\[\tag{%o5} 0.2\]
| (%i13) | ro:1000;g:9.81;x0:0;y0:0;x1:0;y1:3;B:1;h1:0; |
\[\]\[\tag{%o6} 1000\]
\[\]\[\tag{%o7} 9.81\]
\[\]\[\tag{%o8} 0\]
\[\]\[\tag{%o9} 0\]
\[\]\[\tag{%o10} 0\]
\[\]\[\tag{%o11} 3\]
\[\]\[\tag{%o12} 1\]
\[\]\[\tag{%o13} 0\]
| (%i15) | Hall:y1+h1;H:y1−y0; |
\[\]\[\tag{%o14} 3\]
\[\]\[\tag{%o15} 3\]
VARIANT # 1 (standart)
P_x
| (%i18) | h_C:(Hall−H/2);w:H·B;I:(B·H··3)/12; |
\[\]\[\tag{%o16} \frac{3}{2}\]
\[\]\[\tag{%o17} 3\]
\[\]\[\tag{%o18} \frac{9}{4}\]
| (%i19) | p:ro·g·h_C; |
\[\]\[\tag{%o19} 14715.0\]
| (%i20) | P:p·w; |
\[\]\[\tag{%o20} 44145.0\]
| (%i22) | h_D:h_C+(I)/(h_C·w),numer;h_D_:Hall−h_D; |
\[\]\[\tag{%o21} 2.0\]
\[\]\[\tag{%o22} 1.0\]
| (%i23) | x1_:x1−x0+long_x; |
\[\]\[\tag{%o23} 7\]
| (%i25) | scale_L:P;scale_P:P/scale_L; |
\[\]\[\tag{%o24} 44145.0\]
\[\]\[\tag{%o25} 1.0\]
| (%i26) | scale_P:P/scale_L; |
\[\]\[\tag{%o26} 1.0\]
| (%i38) | h1;Hall;H;x1;h_D_;h_D;scale_P;scale_P_z;scale_P_x;P;P_x;P_z; |
\[\]\[\tag{%o27} 0\]
\[\]\[\tag{%o28} 3\]
\[\]\[\tag{%o29} 3\]
\[\]\[\tag{%o30} 0\]
\[\]\[\tag{%o31} 1.0\]
\[\]\[\tag{%o32} 2.0\]
\[\]\[\tag{%o33} 1.0\]
\[\]\[\tag{%o34} {{\ensuremath{\mathrm{scale\_ P}}}_z}\]
\[\]\[\tag{%o35} {{\ensuremath{\mathrm{scale\_ P}}}_x}\]
\[\]\[\tag{%o36} 44145.0\]
\[\]\[\tag{%o37} {P_x}\]
\[\]\[\tag{%o38} {P_z}\]
| --> | /* Definition of a block with local variables */; |
| (%i39) |
ds(r) := block([x, n], n:100, x:r·n, x:floor(x), x:x/100, return(x) )$ |
| (%i43) | h_C:ds(h_C),numer; w:ds(w),numer; I:ds(I),numer;p:ds(p),numer; |
\[\]\[\tag{%o40} 1.5\]
\[\]\[\tag{%o41} 3\]
\[\]\[\tag{%o42} 2.25\]
\[\]\[\tag{%o43} 14715\]
| (%i45) | P:ds(P),numer; hi_D_:ds(h_D_),numer; |
\[\]\[\tag{%o44} 44145\]
\[\]\[\tag{%o45} 1\]
| (%i46) | H2:y1+h1+3; |
\[\]\[\tag{%o46} 6\]
| (%i47) | b:(2/Hall)·(Hall−0.1·y1); |
\[\]\[\tag{%o47} 1.8\]
| (%i49) | −(2/Hall)·(Hall−1·y1);y1; |
\[\]\[\tag{%o48} 0\]
\[\]\[\tag{%o49} 3\]
| (%i50) | if h1 < 2 then Hall_add:Hall+5 else Hall_add:Hall; |
\[\]\[\tag{%o50} 8\]
| (%i54) | x1_;Hall;Hall_add;x_left:2; |
\[\]\[\tag{%o51} 7\]
\[\]\[\tag{%o52} 3\]
\[\]\[\tag{%o53} 8\]
\[\]\[\tag{%o54} 2\]
| (%i59) |

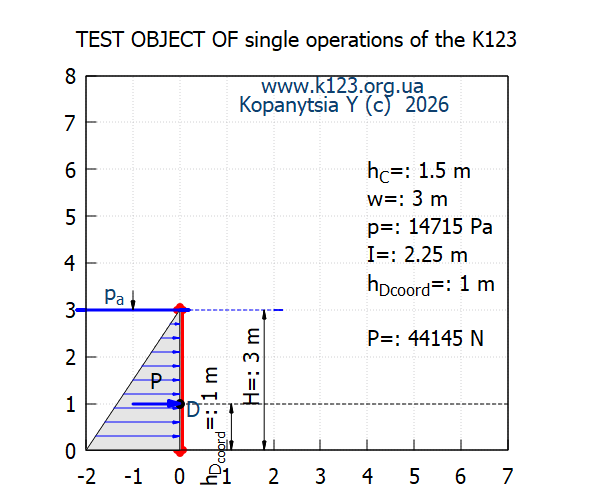

draw2d( xrange = [−x_left,x1_], /* size picture x - x1 & y - H1 */ yrange = [0,Hall_add], proportional_axes=xy, font = "Arial", font_size = 16, grid = true, line_width=1, color=black, title = "TEST OBJECT OF single operations of the K123", line_width=8, line_type = solid, points_joined = true, color=red, points([[x0,y0],[x1,y1],[x2,y1]]), /* inclined flat surface */ line_width=1, color=black, line_type = dashes, points_joined = true, fill_color = white, polygon([[−2,0],[0,Hall],[0,y0],[−2,0]]), line_width=4, line_type = solid, points_joined = true, color=red, points([[x0,y0],[x1,y1],[x1,Hall]]),/* inclined flat surface */ line_width=1, color=black, line_type = dashes, points_joined = true, fill_color = white, polygon([[−2,0],[0,Hall],[0,y0],[−2,0]]), /* rectangle epura of presure P_x */ fill_color = gray90, line_type = solid, polygon([[−2,0],[−(2/Hall)·(Hall−1·y1),y1],[0,y1],[0,0],[−2,0]]), /* rectangle epura of presure P_x */ /* Epura */ color = "blue", line_width=1, line_type = solid, head_angle = 10, head_length = 0.15, vector([−(2/Hall)·(Hall−0.1·y1),0.1·y1],[(2/Hall)·(Hall−0.1·y1),0]), /* horizontal presure vector p */ vector([−(2/Hall)·(Hall−0.2·y1),0.2·y1],[(2/Hall)·(Hall−0.2·y1),0]), /* horizontal presure vector p */ vector([−(2/Hall)·(Hall−0.3·y1),0.3·y1],[(2/Hall)·(Hall−0.3·y1),0]), /* horizontal presure vector p */ vector([−(2/Hall)·(Hall−0.4·y1),0.4·y1],[(2/Hall)·(Hall−0.4·y1),0]), /* horizontal presure vector p */ vector([−(2/Hall)·(Hall−0.5·y1),0.5·y1],[(2/Hall)·(Hall−0.5·y1),0]), /* horizontal presure vector p */ vector([−(2/Hall)·(Hall−0.6·y1),0.6·y1],[(2/Hall)·(Hall−0.6·y1),0]), /* horizontal presure vector p */ vector([−(2/Hall)·(Hall−0.7·y1),0.7·y1],[(2/Hall)·(Hall−0.7·y1),0]), /* horizontal presure vector p */ vector([−(2/Hall)·(Hall−0.8·y1),0.8·y1],[(2/Hall)·(Hall−0.8·y1),0]), /* horizontal presure vector p */ vector([−(2/Hall)·(Hall−0.9·y1),0.9·y1],[(2/Hall)·(Hall−0.9·y1),0]), /* horizontal presure vector p */ color = "black", fill_color = light_blue, line_width=2, head_angle = 15, head_length = 0.25, color=black,point_type = filled_circle, point_size = 1.5, points_joined = false, points([[0,h_D_]]), label_orientation = horizontal, label(["P",x0−0.5,h_D_+0.5]), /* point P */ line_width=1, line_type = dashes, head_angle = 180, vector([−1,h_D_],[3·y1,0]), /* horizontal line dot to vector P */ color = "blue", line_width=3, line_type = solid, head_angle = 15, head_length = 0.25, vector([x0−1,h_D_],[+scale_P,0]), /* horizontal vector P */ font = "Arial", font_size = 16, color = "#0e406e", label_orientation = horizontal, label(["www.k123.org.ua ", x1_−long_x/2,Hall_add−label_URL]), label(["Kopanytsia Y (c) 2026", x1_−long_x/2,Hall_add−3·label_URL]), label_orientation = horizontal, label_alignment = left, color = black, label([concat("h_{C}=: ", string(h_C)," m"), x1_−label_left, y1·2]), label([concat("w=: ", string(w)," m"), x1_−label_left, y1·1.8]), label([concat("p=: ", string(p)," Pa"), x1_−label_left, y1·1.6]), label([concat("I=: ", string(I)," m"), x1_−label_left, y1·1.4]), label([concat("h_D_{coord}=: ", string(hi_D_)," m"), x1_−label_left, y1·1.2]), label([concat("P=: ", string(P)," N"), x1_−label_left, y1·0.8]), line_type = solid, color=black,line_width=1, head_both = true, head_length = 0.2, head_angle = 10, vector([x1+scale_P+0.1,0],[0,h_D_]), /* h_D_ */ label_alignment = center, label_orientation = vertical, font_size = 10, label([concat("h_{D_{coord}}=: ", string(hi_D_)," m"), x1+0.7, h_D_·0.6]), /* Input data */ line_type = solid, color=blue, line_width=3, head_angle = 180, vector([−x_left,Hall],[x_left,0]), /* horizontal line dot to vector P_x */ line_width=1, line_type = dashes, head_angle = 180, vector([x0,y1],[x_left,0]), /* horizontal line dot size H */ line_type = solid, color=black, line_width=1, line_type = solid, head_both = true, head_length = 0.2, head_angle = 10, vector([x1+x_left−0.2,0],[0,y1]), /* vertical line size H */ label_alignment = center, label_orientation = vertical, font_size = 10, label([concat("H=: ", string(Hall)," m"), x1+x_left−0.5, Hall·0.6]), /* vertical size H */ line_type = solid, color=black, line_width=1, line_type = solid, head_both = false, head_length = 0.2, head_angle = 10, vector([x0−x_left/2,y1+0.4],[0,−0.4]), /* vector p_a */ font = "Times-Italic", font_size = 16, color = "#0e406e", label_orientation = horizontal, label(["p_{a} ", x0−x_left/2−0.4,y1+0.4]), label(["D ", x0+0.3,hi_D_−0.1]) ); |
\[\]\[\tag{%o59} \]
Created with wxMaxima.
The source of this Maxima session can be downloaded here.
